K-ECO | Motorised TV Lift

Conceal your TV inside any cabinet, smoothly popping it up when it's time to watch and tucking it away when you're done.

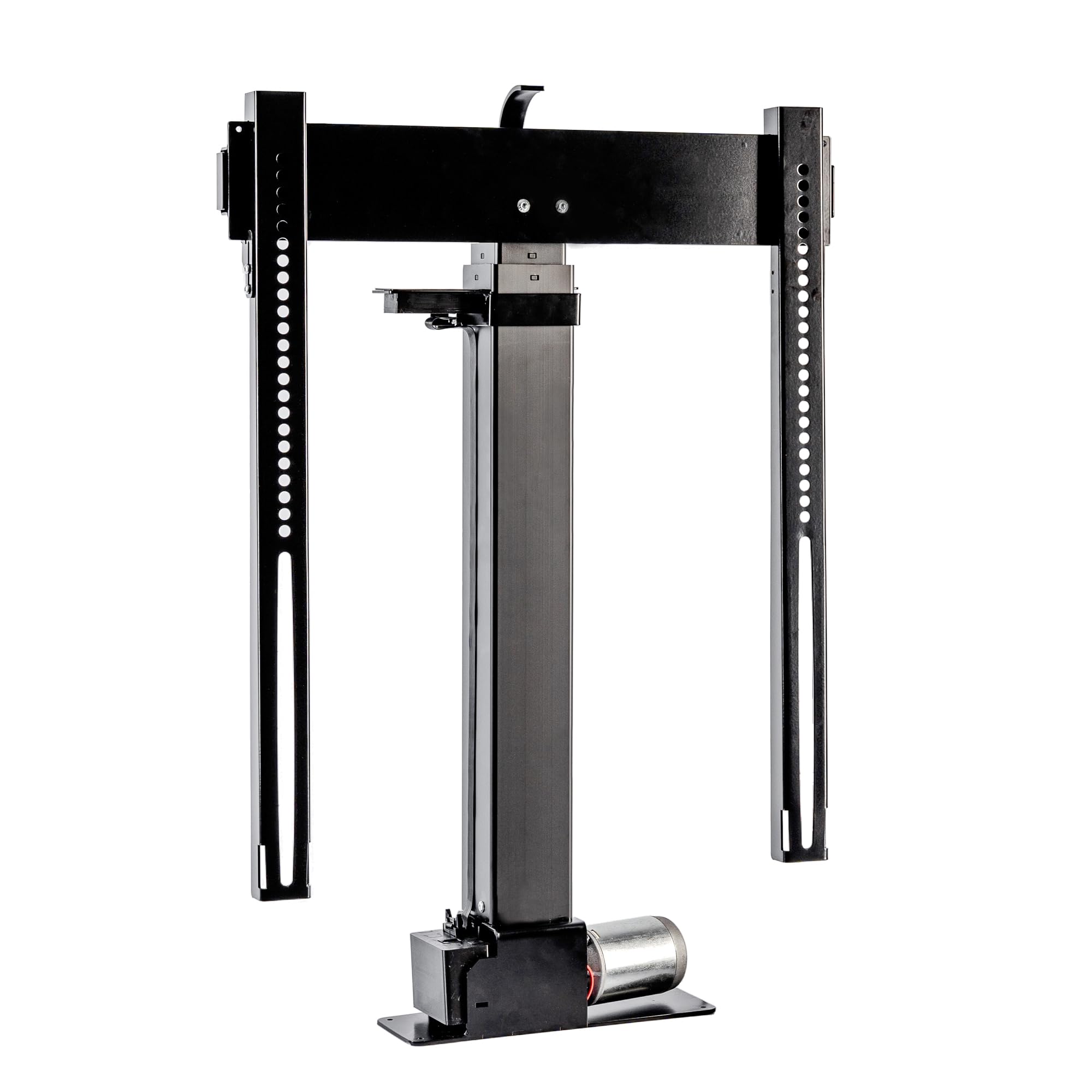

Motorised TV Lift

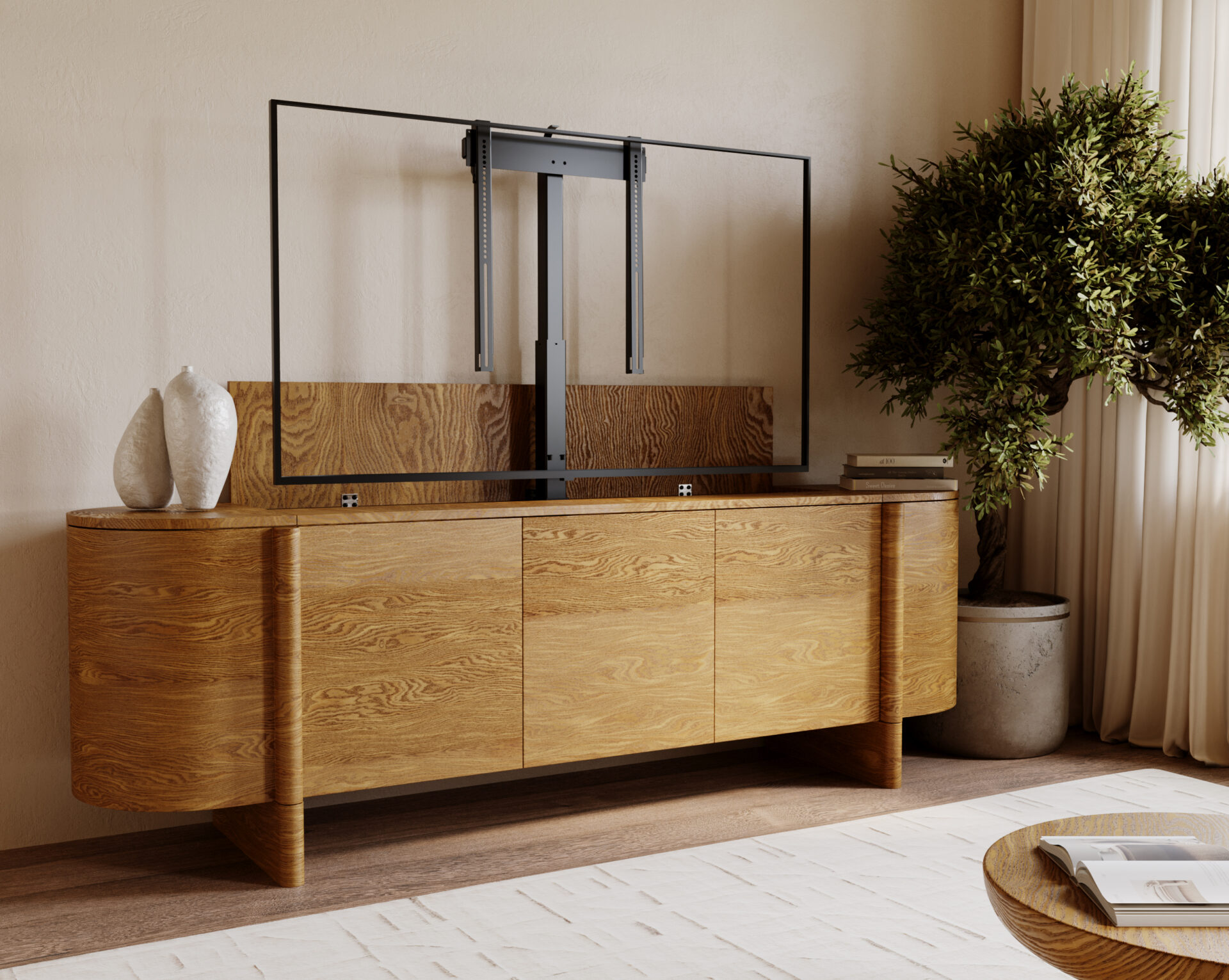

Motorised Cabinet TV lift K-ECO

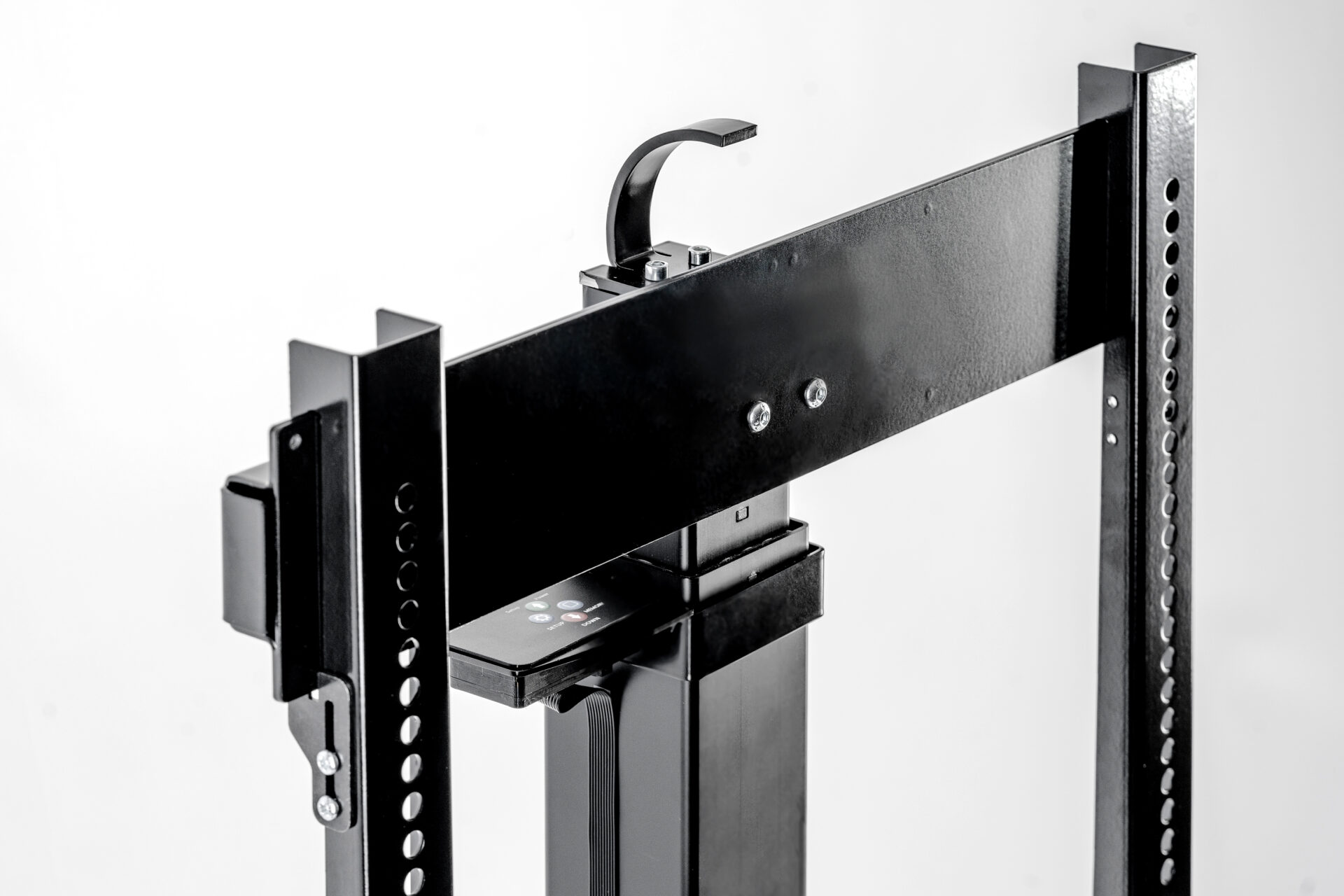

Motorised TV Lift K-ECO close-up

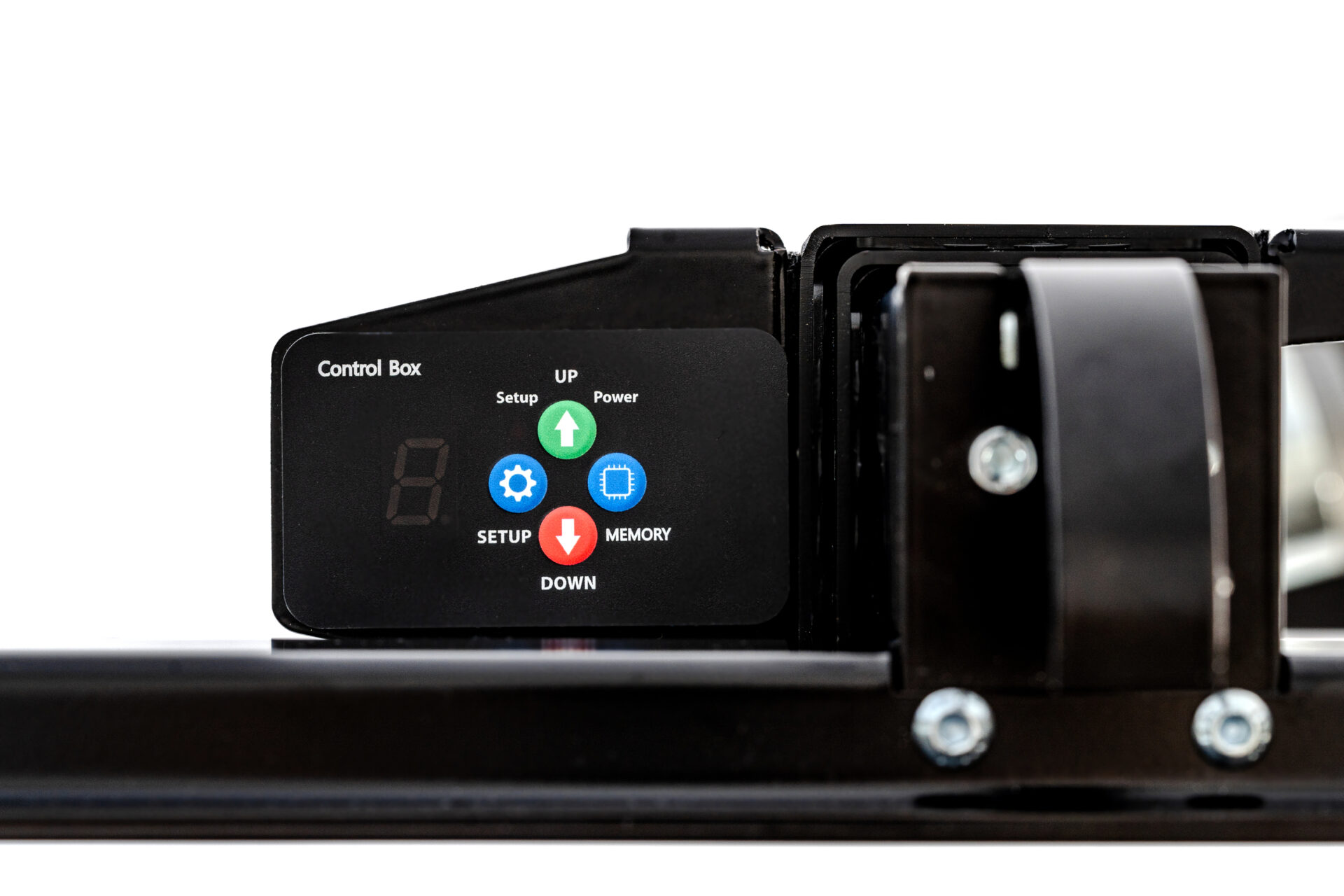

Motorised TV Lift K-ECO control panel close-up

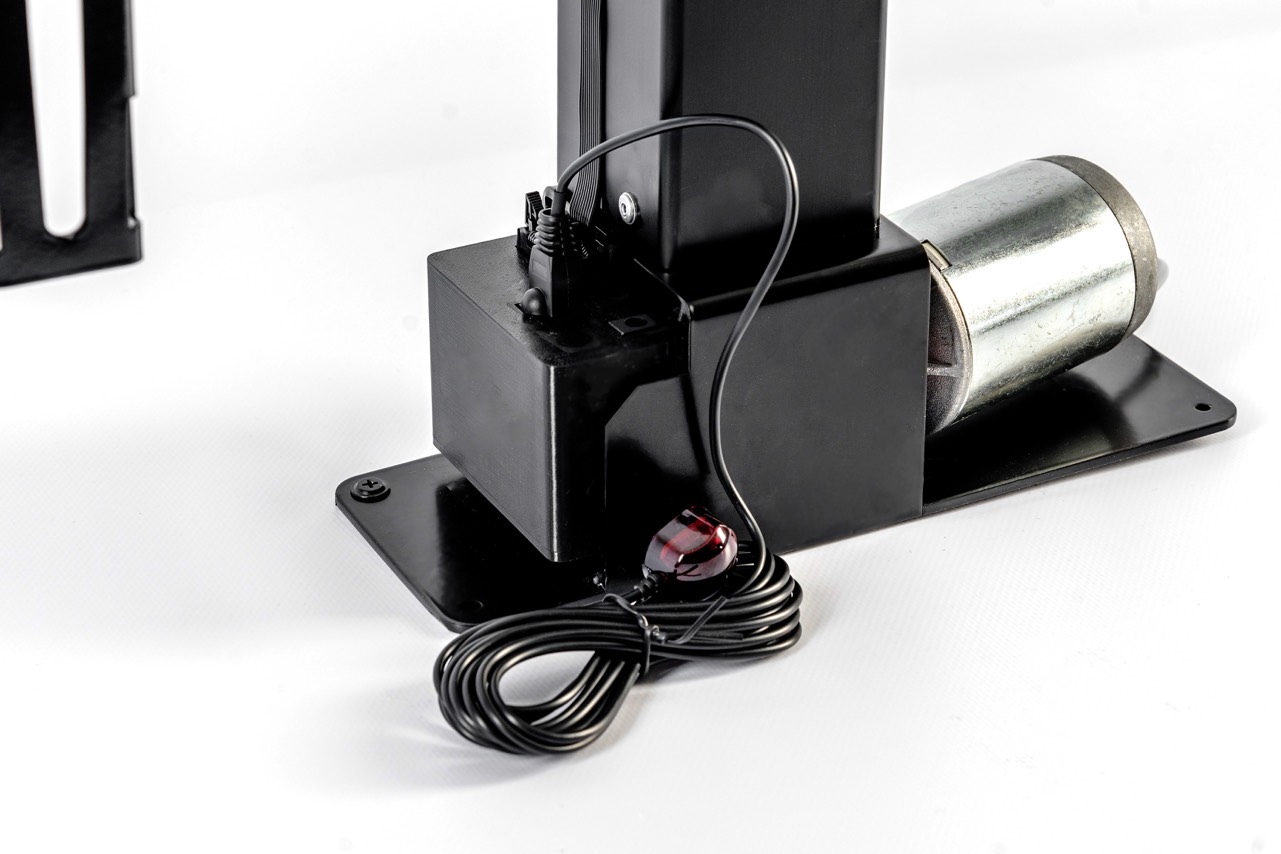

Electric TV Lift IR receiver plugged-in close up

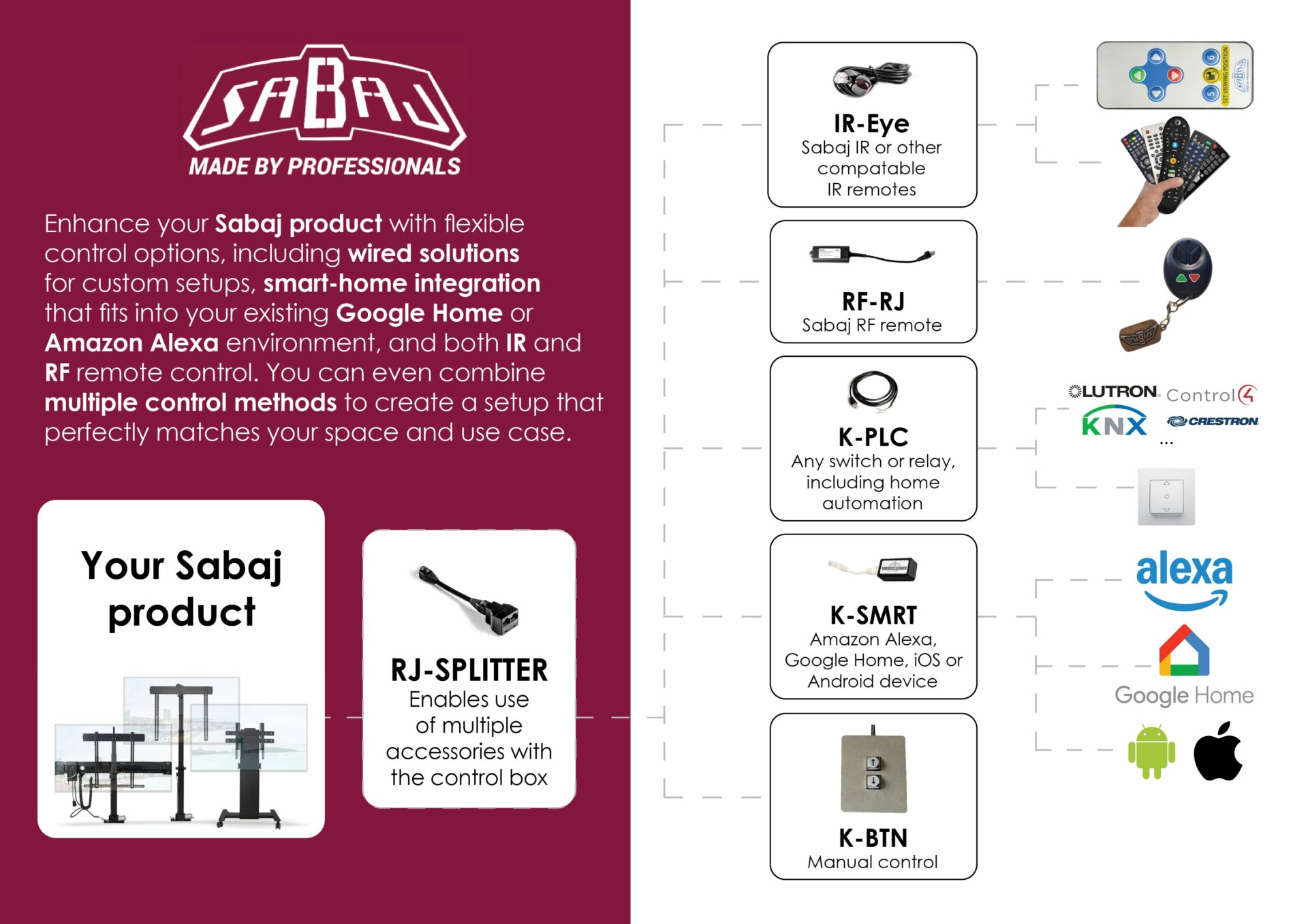

Accessory port infographic
Motorised TV Lift
Motorised Cabinet TV lift K-ECO
Motorised TV Lift K-ECO close-up
Motorised TV Lift K-ECO control panel close-up
Electric TV Lift IR receiver plugged-in close up
Accessory port infographic

Motorised TV Lift | Concealed Furniture Installation - K-ECO

Product ID: K-ECO

Heavy-duty, EU-manufactured concealed TV lift mechanism for custom furniture integration.

  • K-1 ECO: Supports TVs up to 55″ / 60kg capacity
  • K-2 ECO: Supports TVs up to 65″ / 80kg capacity
  • Features: 5-year warranty, universal VESA mount, multiple control options.
Description
3D Model
Video
Specification
Related products
Downloads

Motorised TV Lift

K-ECO — Conceal your TV in any cabinet

Up to 65″ 80 kg capacity 5-year warranty EU manufactured

Accessory port

Expand control via RF, WiFi, or home automation

Collision detection

Stops and reverses on resistance

Hinged or fixed lid

Two installation methods

Height memory

Returns to your saved position

Adjustable height & solid build

The K-ECO motorised TV lift travels up to 754 mm on the K-1 ECO and 855 mm on the K-2 ECO, letting you position your screen at any height within that range. Supports up to 60 kg and 80 kg respectively.

Automatic safety system

Collision detection stops the TV Lift the moment it meets resistance. The overheat protection system shuts the motor off automatically if excessive weight is detected.

Multiple control options

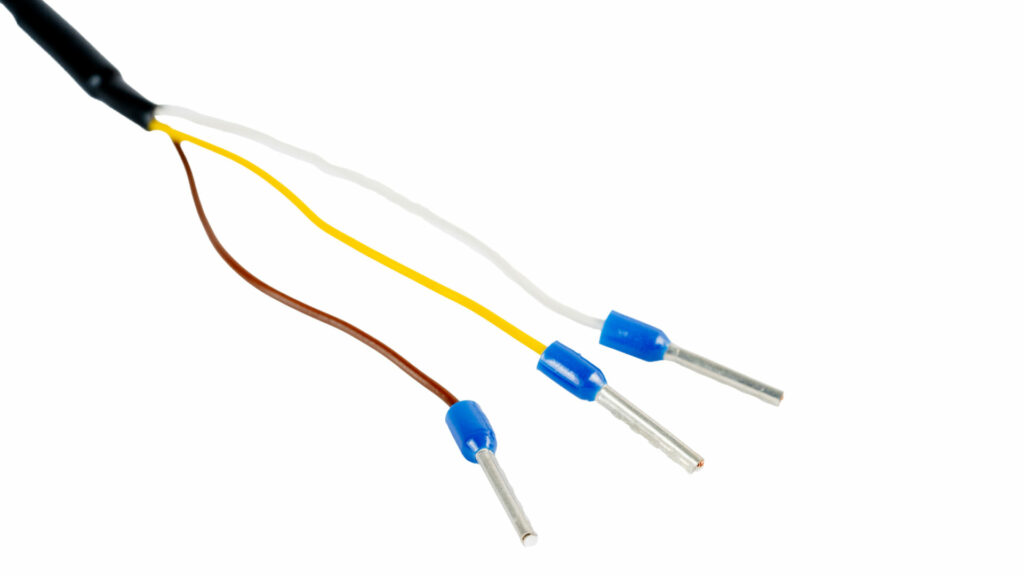

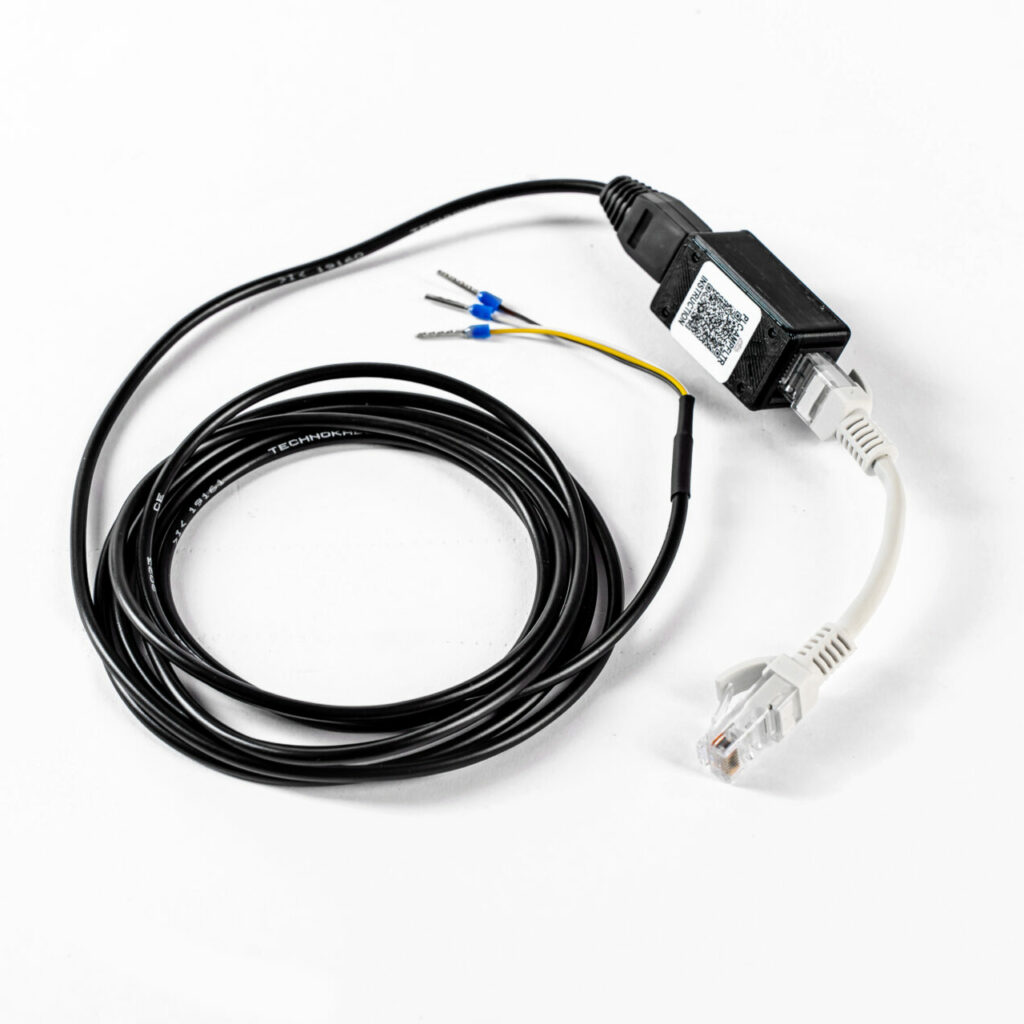

Control your motorised TV lift with your existing TV remote via the included IR receiver, or expand with RF, a button panel, K-PLC home automation relay, or the K-SMRT WiFi module for full smart home integration with Google Home and Amazon Alexa.

Key feature

Accessory port system

One dedicated port connects all optional accessories — IR extender, button panel, RF module, and WiFi adapter — without additional wiring. Expand your control options at any time after installation, with no tools required.

Accessory port system

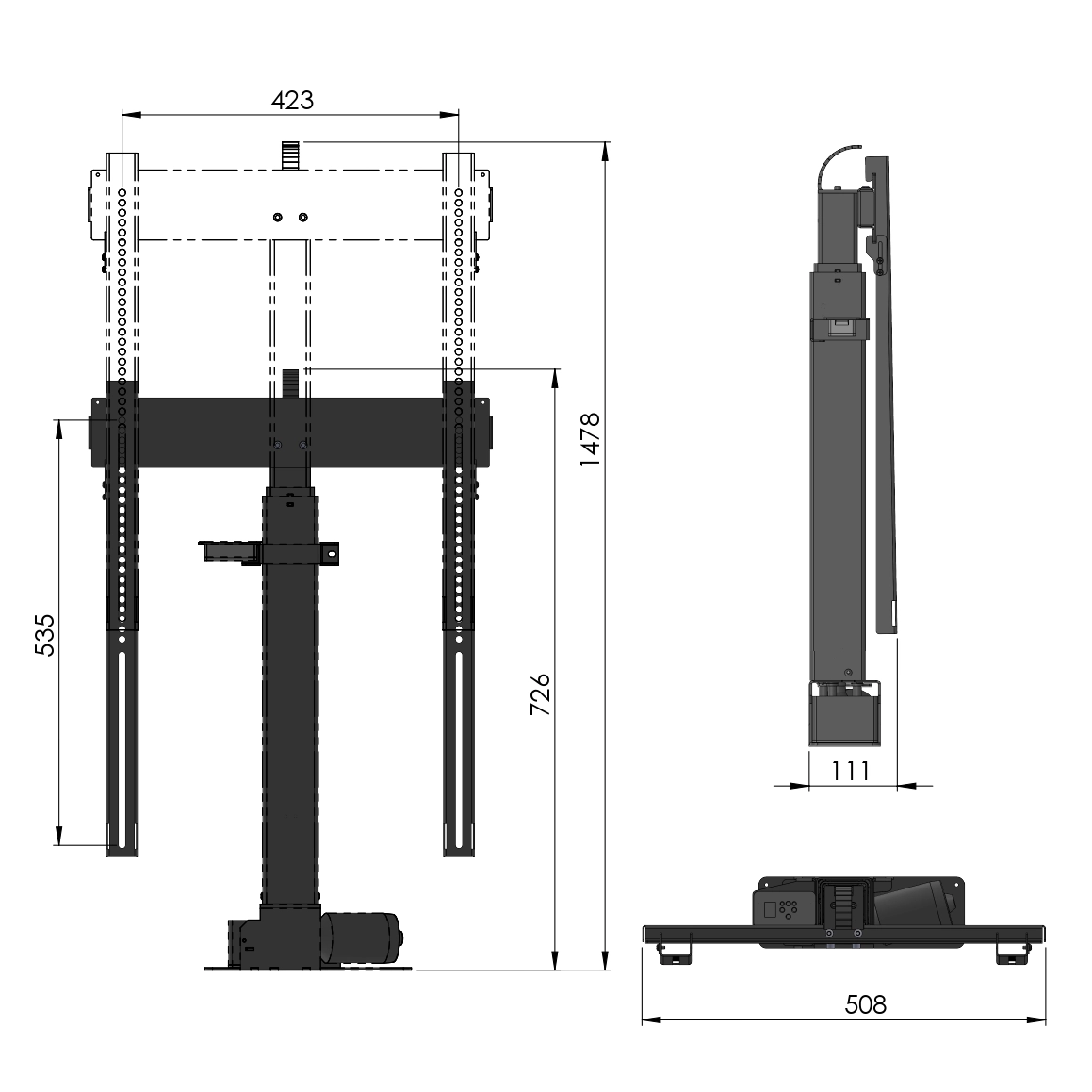

Dimensions

All heights are subject to a ±3 mm manufacturing tolerance.

View downloads
K-1 ECO · up to 55″ / 60 kg
K-2 ECO · up to 65″ / 80 kg

Frequently asked questions

What size TV fits the K-ECO motorised TV lift?
The K-ECO motorised TV lift is available in two versions. The K-1 ECO supports TVs up to 55″ and 60 kg, compatible with VESA patterns up to 400×600 mm. The K-2 ECO supports TVs up to 65″ and 80 kg, compatible with VESA patterns up to 600×600 mm. Both models use a standard VESA mount so compatibility with most modern flat screen TVs is straightforward.

For the K-1 ECO you need at least 726 mm of cabinet height, 508 mm of width, and 111 mm of depth plus the depth of your TV. For the K-2 ECO the minimum height is 826 mm, minimum width 708 mm, and the same 111 mm depth plus TV. If your TV is wider than the minimum cabinet width, use the TV width as your reference instead. We recommend leaving additional clearance on all sides to allow for comfortable installation and cable management.

As the K-ECO rises, it pushes the cabinet lid upward and backward behind the TV, returning it to the closed position automatically when the lift retracts. The fixed lid configuration simply requires attaching the lid directly to the lift. For a hinged lid, attach the lid to the cabinet with hinges angled slightly toward the lift.
Yes — the K-ECO supports Amazon Alexa and Google Home through the optional K-SMRT WiFi module, which connects via the built-in accessory port. Once installed, you can trigger the K-ECO using voice commands or through the wBox app on iOS and Android. No additional wiring is required beyond plugging in the K-SMRT module.

The K-ECO has a built-in collision detection system that stops the lift immediately when it meets resistance. The motor protection system shuts off automatically if excessive weight is detected, protecting both the lift mechanism and your TV from damage.

Yes — the K-ECO includes a height memory function that saves your preferred viewing position. The height is programmed directly on the K-ECO control box, with the full procedure detailed in the included manual. Once saved, the lift returns to the exact same height every time without any manual adjustment.

The K-ECO motorised TV lift uses a telescopic mechanism designed for quiet, smooth operation. It produces minimal noise during extension and retraction — comparable to a slowly opening drawer rather than a mechanical motor. Exact noise levels depend on the cabinet material and how the lift is mounted inside the furniture.

Specification

Features:K-1 ECOK-2 ECO
Max TV weight60 kg (132 lb)80 kg (176 lb)
Max TV height750 mm (29″)855 mm (33″)
Travel752 mm (29″)870 mm (34″)
VESA100x100 - 400x600100x100 - 600x600
Shipping weight12 kg (26 lb)16 kg (35 lb)
Lifting speed20 mm/s20 mm/s
Power consumption80W80W
Safety SystemCollision detection, Overheat protectionCollision detection, Overheat protection
Default control methodUniversal IR receiverUniversal IR receiver
K-1 ECO 60 kg (132 lb)
K-2 ECO 80 kg (176 lb)
K-1 ECO 750 mm (29″)
K-2 ECO 855 mm (33″)
K-1 ECO 752 mm (29″)
K-2 ECO 870 mm (34″)
K-1 ECO 100x100 - 400x600
K-2 ECO 100x100 - 600x600
K-1 ECO 12 kg (26 lb)
K-2 ECO 16 kg (35 lb)
K-1 ECO 20 mm/s
K-2 ECO 20 mm/s
K-1 ECO 80W
K-2 ECO 80W
K-1 ECO Collision detection, Overheat protection
K-2 ECO Collision detection, Overheat protection
K-1 ECO Universal IR receiver
K-2 ECO Universal IR receiver

3D Model

Video

Downloads

K-1 ECO 3D MODEL download file
K-2 ECO 3D MODEL download file
K-ECO ASSEMBLY MANUAL download file
K-ECO USER MANUAL download file
K-1 ECO Dimensions download file
K-2 ECO Dimensions download file
